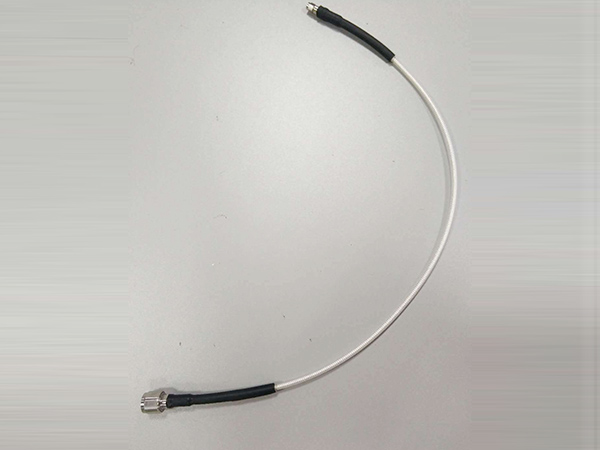

N Male to SMA Male to 18g Test Cable AssemblyN Male to SMA Male to 18g Test Cable Assembly
N Male to SMA Male to 18g Test Cable Assembly
详情说明
| Cable SMAM-NM-24 Inch |
|
|
|
|
|
|
|
 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
| Construction Data |
|
|
|
|
|
|
| Part Number |
Product Model |
Description |
Insertion Loss (dB) 25℃ |
| Adaptor |
Cable Length |
up to18 GHz |
SM-NM-142-18-24
|

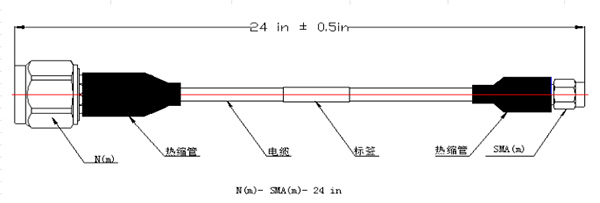

Cable SMA Male To N Male 24 Inch Length
|
SMA, Male, Straight, /N, Male, Straight |
24 Inch |
≤ 1dB (3GHz) |
≤ 1.32dB (18GHz) |
|
|
|
|
|
|
|
| Electrical Specifications |
|
|
|
|
|
|
| Impedance |
50 |
Ω |
|
| Frequency Range |
18 |
GHz |
|
| RF Operating Voltage, maximum (vrms) |
≤1000 |
V |
|
| Capacitance |
96.45 |
pF/m |
|
| Velocity |
70% |
|
|
| VSWR |
≤1.25(up to 18 GHz) |
| Shielding Effectiveness |
>100dB |
|
|
|
|
|
|
|
|
|
| Mechanical Specifications |
|
|
|
|
|
|
| Bend Radius |
25 |
mm |
|
| Bending Moment |
0.7～1.1 |
Nm |
|
|
|
|
|
|
|
|
| Environmental Specifications |
|
|
|
|
|
|
| Operating Temperature |
-55℃ to +155℃ |
|
|
| 2002/95/EC (ROHS指标) |
Compliant |
|
|
|
|
|
|
|
|
|
| Material Specifications |
|
|
|
|
|
| Item |
Material |
|
Plating |
| Center Contact |
Beryllium bronze |
|
Gold |
| Body |
SUS304 |
Passivating |
| Nut |
SUS304 |
Passivating |
| Insulator |
PTFE |
|
|
|
|
|
|
|
|
|
